HT960
Skid steer loaders are also known as skid steer loaders, multifunctional engineering vehicles, and multifunctional engineering machines. It is a wheeled special chassis equipment that uses the difference in the linear velocity of the wheels on both sides to realize the steering of the vehicle. It is mainly used in occasions where the work site is narrow, the ground is undulating, and the work content changes frequently.
It is suitable for infrastructure construction, industrial application, dock loading and unloading, urban streets, residences, barns, livestock houses, airport runways, etc., and can also be used as auxiliary equipment for large-scale construction machinery. There are two types of skid steer loaders: wheeled and crawler.
Baking paint process adopted on the whole machine to ensure a stronger adhesion and be colorfast.
A small loader is a kind of construction machinery that must be operated, maintained and maintained by personnel who are familiar with the characteristics of the loader and have relevant operating knowledge. The main workplaces of loaders are construction sites, cement prefabricated fields, lime kilns, stone plants, sand fields, coal fields, snow shoveling, as well as loading, unloading and stacking of bulk materials, and can also be used for large-scale farms to remove garbage. Small multi-function loader is suitable for small and medium construction.
Electrophoresis frame adopted to ensure resistant to rust.

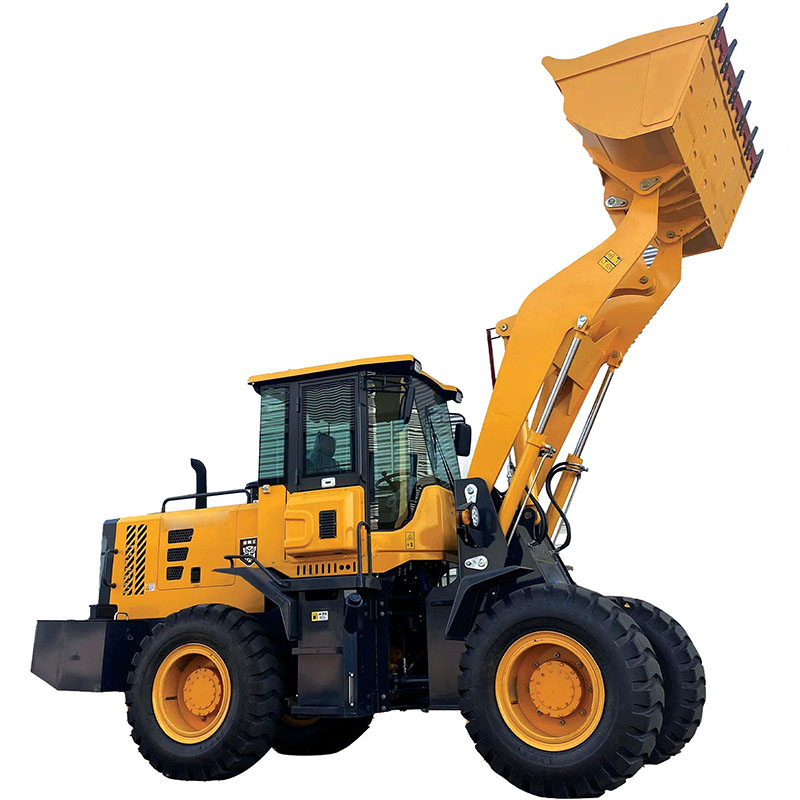

Features of HT960 Small Wheel Loader :
Wheel loaders Can be equipped with a variety of attachments to achieve a multi-function,multi-purpose machine.
Technical parameters of HT960 Small Wheel Loader :
HT960 | |
Wheel Loader Basic Information | |
Overall Operating Weight | 19000kg |
L*W*H | 8360*2950*3600mm |
Wheel base | 3260mm |
Wheel Tread | 2250mm |
Bucket Capacity | 3.5m³ |
Rated Load | 6000kg |
Max. Breakout Force | 200KN |
Max.Dump Height | 3.16m |
Engine Information | |
Brand | WEICHAI |
Model | WEICHAI WD10G240E21 |
Type | inline,water cooled,dir.inject,fourstrokees |
Rated Power | 175KW |
Rated Speed | 2200r/min |
Steering System Drive System Information | |
Tire Size | 26.5-25 |
Steering Angle | 38°±1 |
Pattern of Wheel Side Moderation | Single stage planetary |
Main Reducer | Spiral bevel gear first reduction |
Type | 38km/h |
Max.Travel Speed | HANGCHI ZL60 |
Transmission Information | |
Information | Electronic control torque converter and gearbox combination |
Transmission | 2forward 1reverse |
