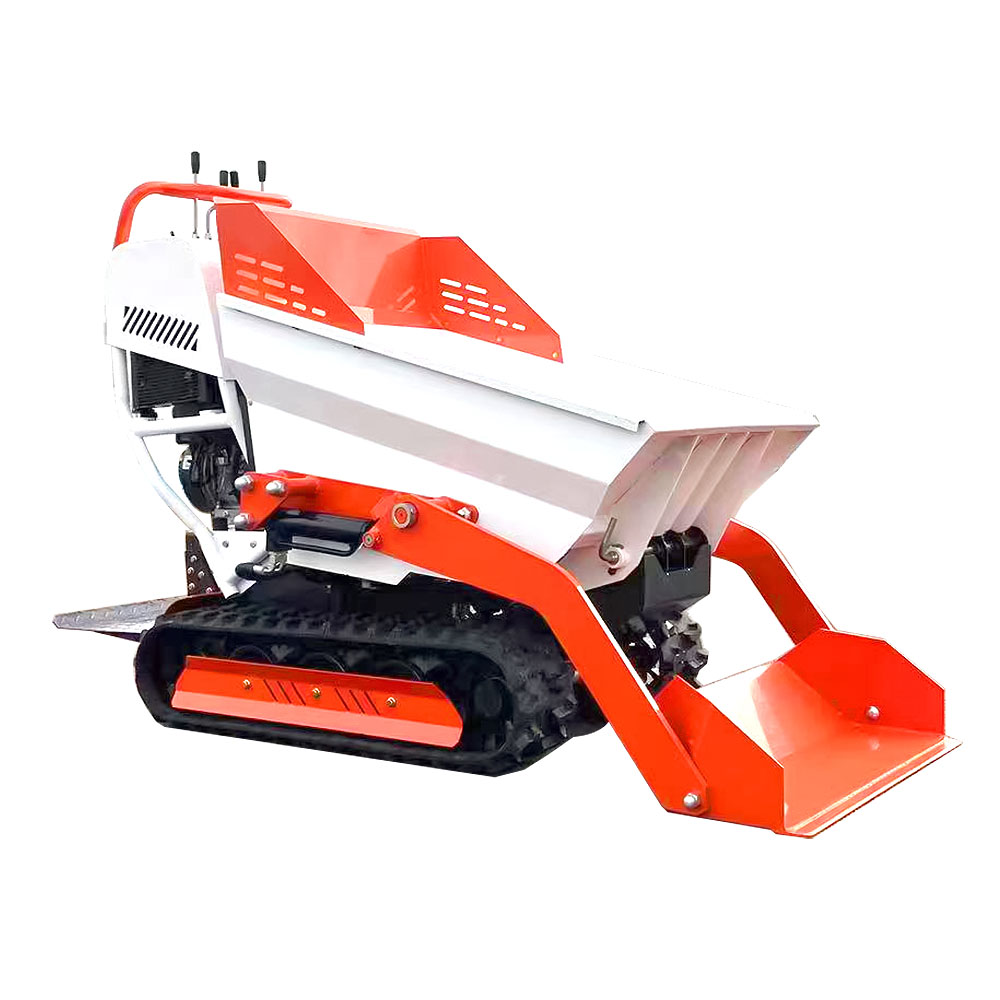

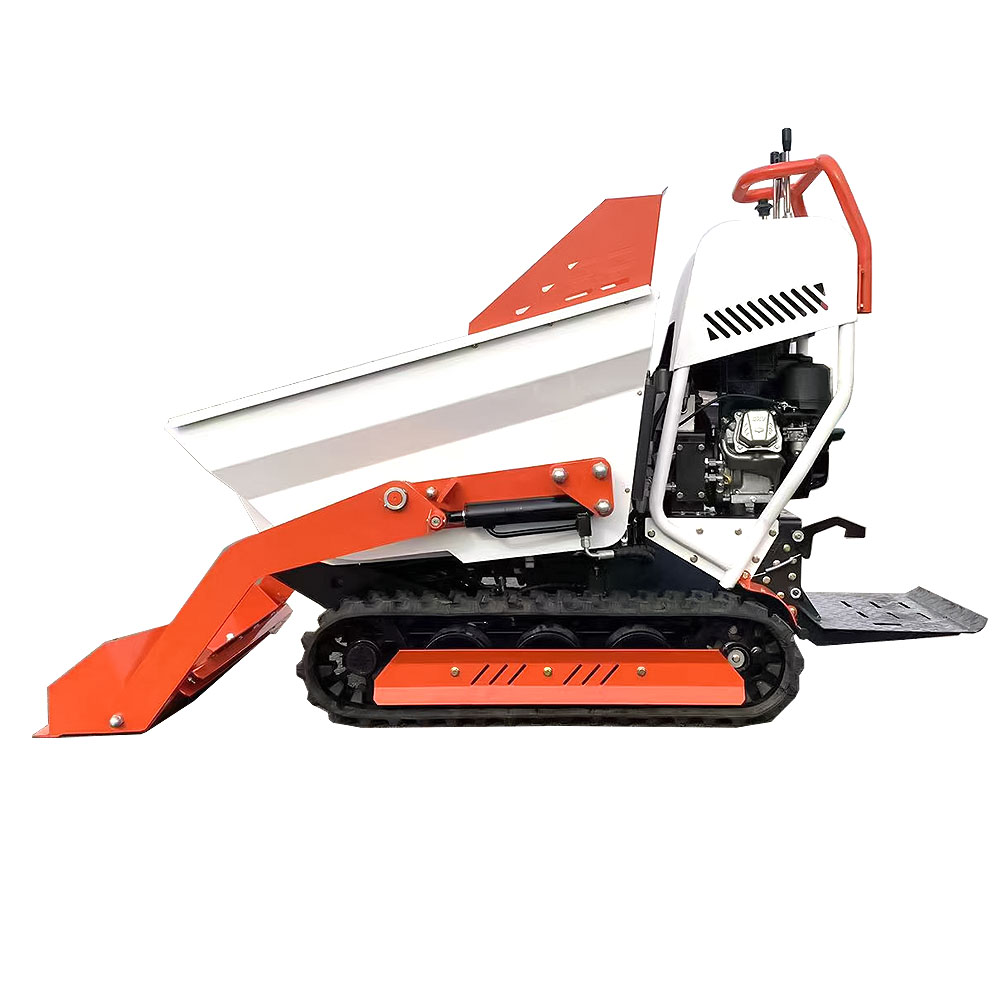

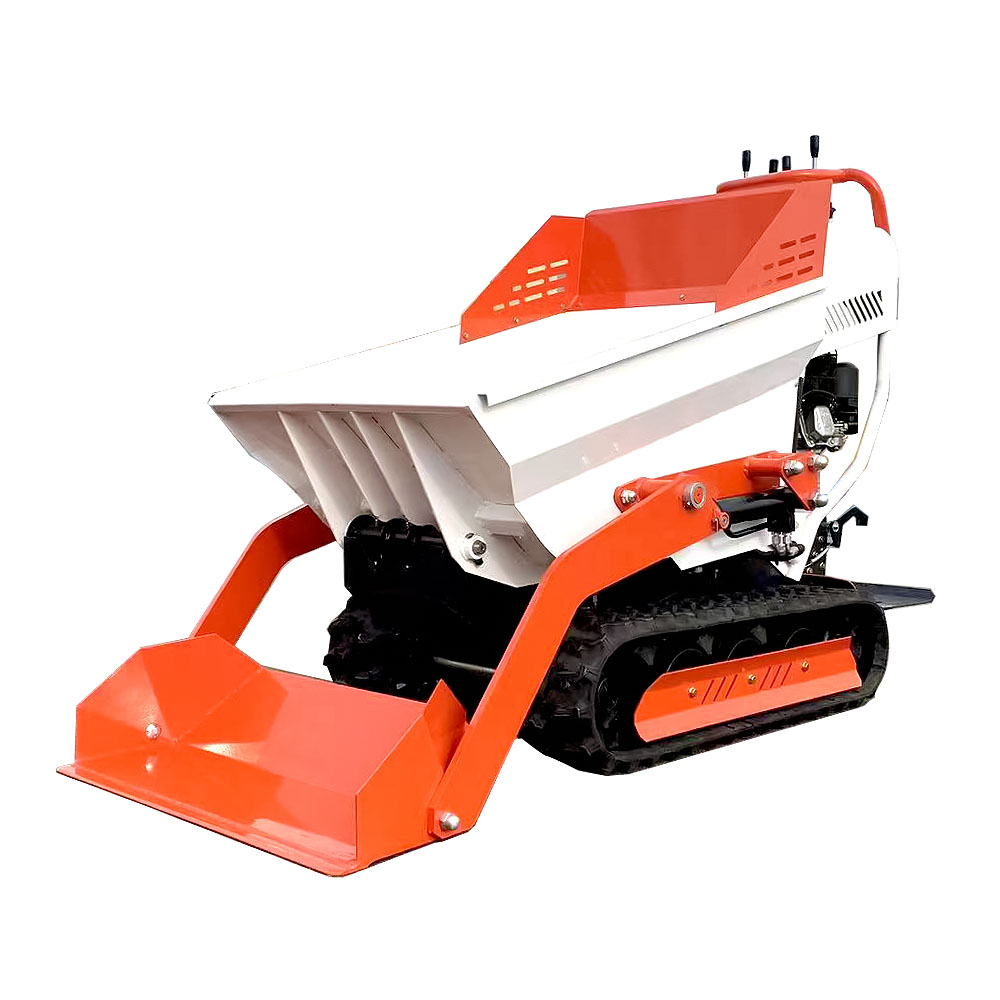

HT500-3
HT500-3 mini tipper adopts air-cooled four-stroke gasoline engine, hydraulic tipper, good climbing grip performance, strong cargo carrying capacity, suitable for a variety of complex terrain.
Crawler transporter, also known as moving truck, unloader, climber. It is suitable for easily transporting large items, crops, sand, and other objects that are difficult to transport manually in a narrow space. This machine is easy to operate, precise control, unique design makes the operation not only fast and cost-saving, but also excellent climbing ability, especially for hard work, which is characterized by rubber tracks, the operator in the transportation process without effort, and will reduce the damage to the ground to small.
1. Small fuselage, stable center of gravity, small turning radius, flexibility, especially to adapt to narrow sites, reduce the cost of road construction.
2. Equipped with hydraulic take-off and landing and self-unloading functions, reduce labor intensity and improve transportation efficiency.
3. Wear-resistant track: use thickened rubber track, built-in steel wire winding, strong grip, high anti-slip force.
4. Adopt air-cooled four-stroke gasoline engine power system, powerful power, low fuel consumption, easy to maintain
5. The chassis is made of thickened cast steel wear-resistant parts, strong and durable.
6. Pull rod control, centralized handle, easy to operate.
7.Wide range of use, simple structure, smooth transmission, labor-saving operation, easy to achieve automatic control.
1.HT500-3 small tracked transporter is suitable for complex road conditions such as swamp, river beach, desert, paddy field, tropical rainforest, mountain and snow.
2. Widely used in the transportation of engineering materials and equipment, construction sand, bricks, mountain wood, fruits and vegetables, seedlings, flower beds and other purposes.
Crawler trucks are suitable for complex road conditions such as swamps, river beaches, deserts, paddy fields, tropical rainforests, mountains and snow, etc. They are widely used for transporting engineering materials and equipment, construction sand and gravel, bricks, mountainous areas of timber, fruits and vegetables, seedlings, flower nurseries and various complex road conditions for handling and other purposes.
MASSES | |
Max. operating mass | 860 kg |
Transport mass | 360 kg |
DIMENSIONS | |
Overall (LxWxH) | 2112x832x1344 mm |
Transport dimensions(LxWxH) | 1480x832x1344 mm |
HYDRAULIC | |
Pump | Tandem gear pump (4cc x2) 3600rpm |
Motor | Disc distribution cycloid motor (x2) |
Working pressure | Max. 180 bar |
Hydraulic flow | 28.8 L |
Motor torque | 645 Nm each at 180 bar |
TRACTION | |
Driving | Hydraulic |
Steering | Fully hydraulic / control valve |
Forward | 3.2 km/h |
Reverse | 3.2 km/h |
Gradeability | 15 ⁰ |
Ground clearance | 71 mm |
ENGINE | |
Model | BRIGGS&STRATTON |
Emission accordance | EPA |
Rated power | 6.5 HP |
Displacement | 208 cc |
Cylinder x stroke | 68.3x55.9 mm |
Fuel tank volumn | 3.1 L |
Oil volume | 0.6 L |
Net weight | 16 Kg |
Startup | Reversing & E-starter |
HOPPER | |
Hopper volumn | 270 L |
STANDARD CONFIG. | |
1)Seperate hydraulic circuit for equipment traction | |
2)Forward and reverse drive controls by handle | |
3)Customized transition gear box for easy engin startup with low ambient temperature | |
4)Option with reverse startup and electric | |
5)Foldable platform for flexiable maneuver | |
6)Detachable hopper protection |
