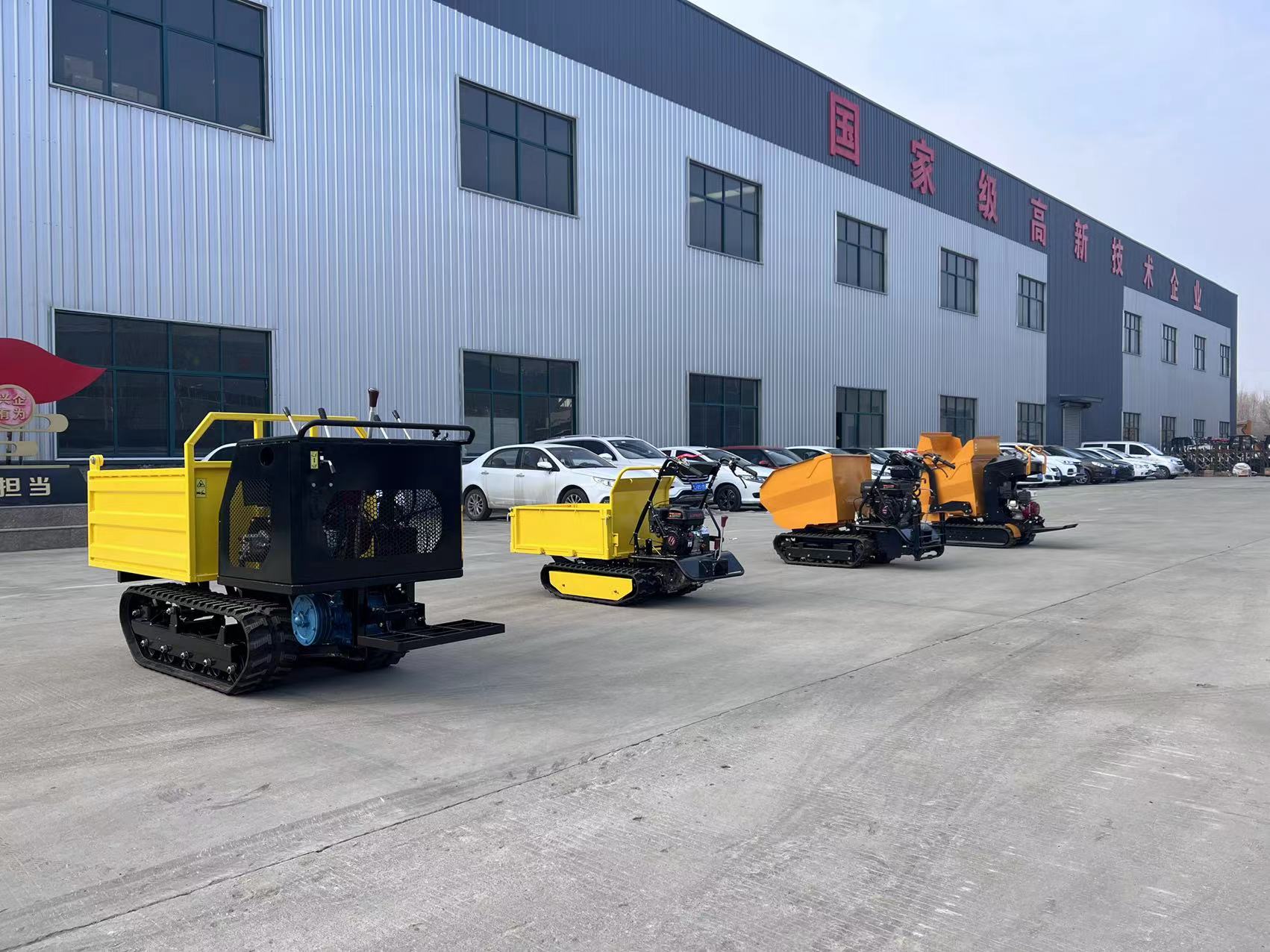

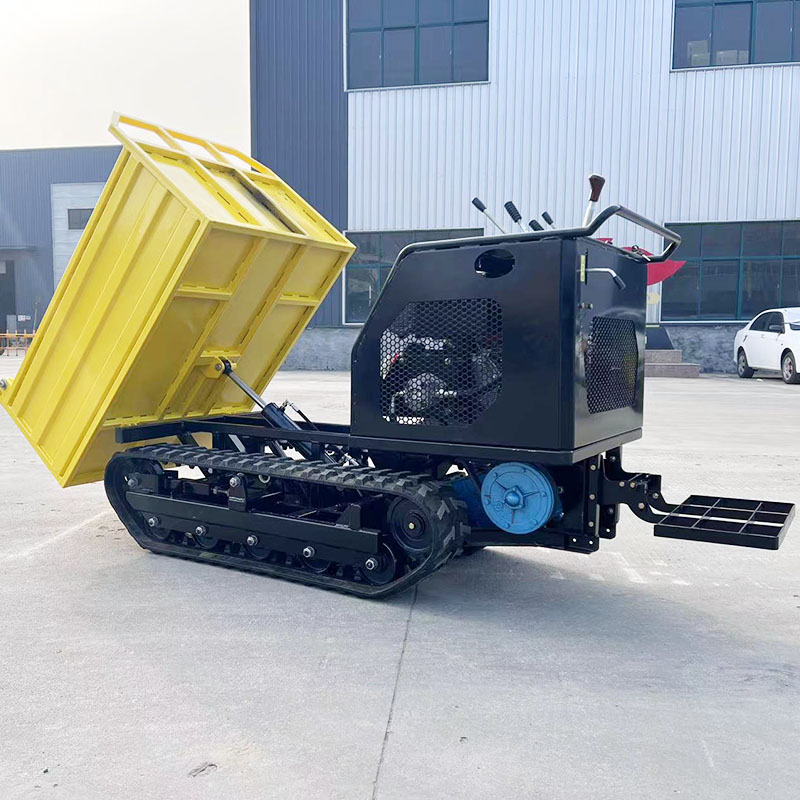

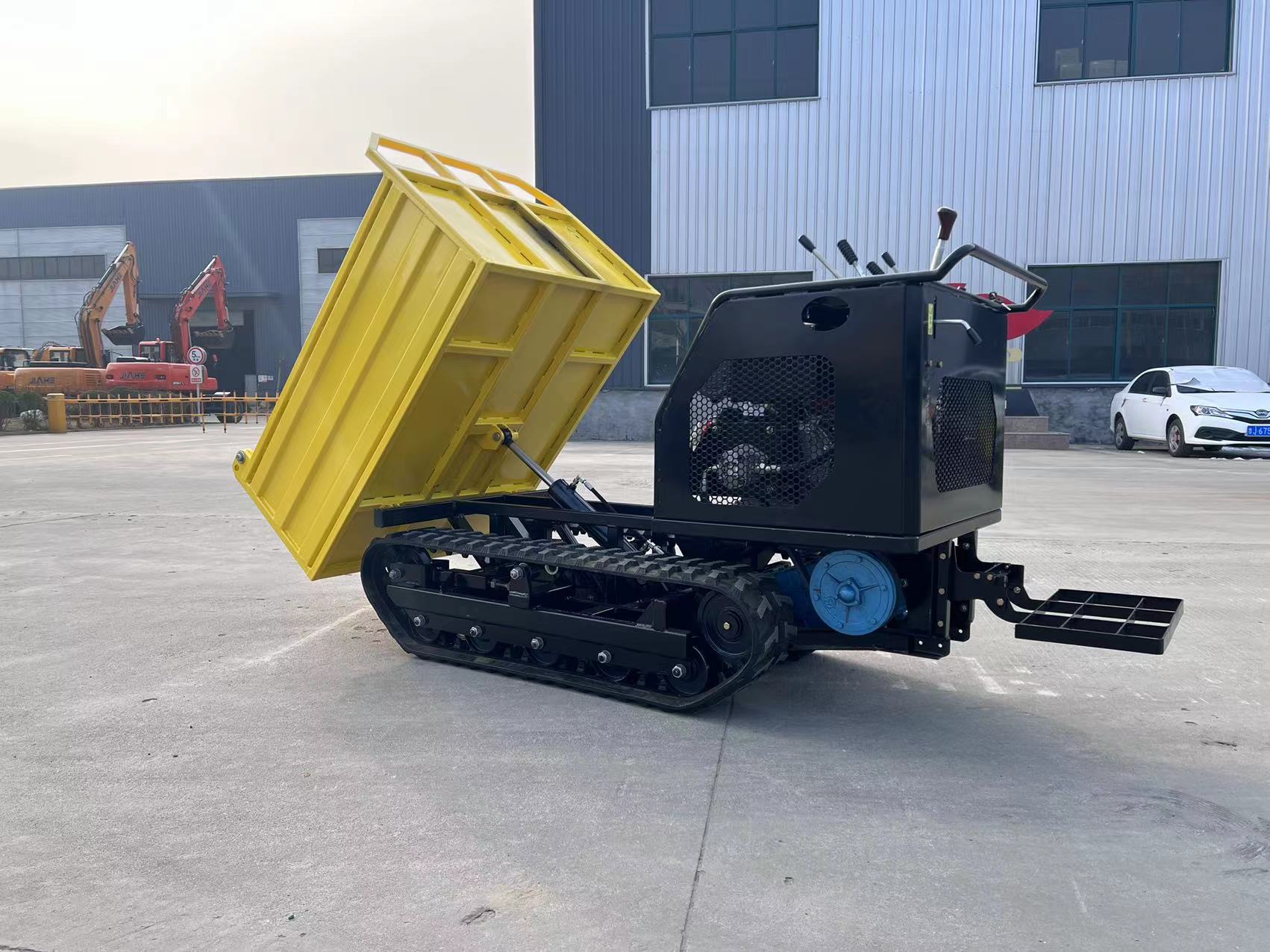

HT-5100 Mini Dumper Instruction
Crawler transporter, also known as truck, unloader, mountain climbing machine. It is suitable for easy transportation of large items, crops, sand and It is suitable for easy transportation of large items, crops, sand and other objects that are difficult to transport manually in narrow Spaces. Simple operation and precise control, the unique design of this machine makes the operation not only fast and cost saving. Simple operation and precise control, the unique design of this machine makes the operation not only fast and cost saving, but also excellent climbing ability, especially for hard work, and it is characterized by rubber tracks that allow the operator to avoid effort during transportation and minimize damage to the ground.
Features:
1. Small fuselage, stable center of gravity, small turning radius, flexibility, especially to adapt to narrow sites, reduce the cost of road construction. construction.
2. Equipped with hydraulic take-off and landing and self-unloading functions, reduce labor intensity and improve transportation efficiency. 3.
3. Wear-resistant track: use thickened rubber track, built-in steel wire winding, strong grip, high anti-slip force. 4.
4. Adopt air-cooled four-stroke gasoline engine power system, powerful power, low fuel consumption, easy to maintain
5. The chassis is made of thickened cast steel wear-resistant parts, strong and durable. 6.
6. Pull rod control, centralized handle, easy to operate.
7.Wide range of use, simple structure, smooth transmission, labor-saving operation, easy to achieve automatic control.
8.Support customization and labeling
Caterpillar tracked trucks are suitable for complex road conditions such as swamps, river banks, deserts, paddy fields, tropical rainforests, mountains and snow, etc. They are widely used for transporting engineering materials and equipments, construction sand and stones, bricks, mountainous timber, fruits and vegetables, seedlings, flower nurseries and various complex road conditions.
HT-5100 Mini Dumper Parameter
Mini Dumper Model | 5100 |
Engine | KoopKD192F |
Cooling mode | Air-cooled |
Fuel | Gasoline |
Emission | Euro 5 |
Transmission | Forward:3/Rear:1 |
Speed type | / |
Loading capacity | 1000kg |
Box length | 1250mm |
Box width | 890mm |
Box depth | 480mm |
Box type | Integrated/one-piece |
Track width | 230mm |
Flow of pump | \ |
Mini Dumper weight | 682KG |
Overall dimension | 2310*950*1345 |
Start mode | Electric |
Driving type |
|
Steering mode | Lever type |
Unload mode | Hydraulic |
Loading quantity | 6sets/20GP |
12sets/40HQ |
